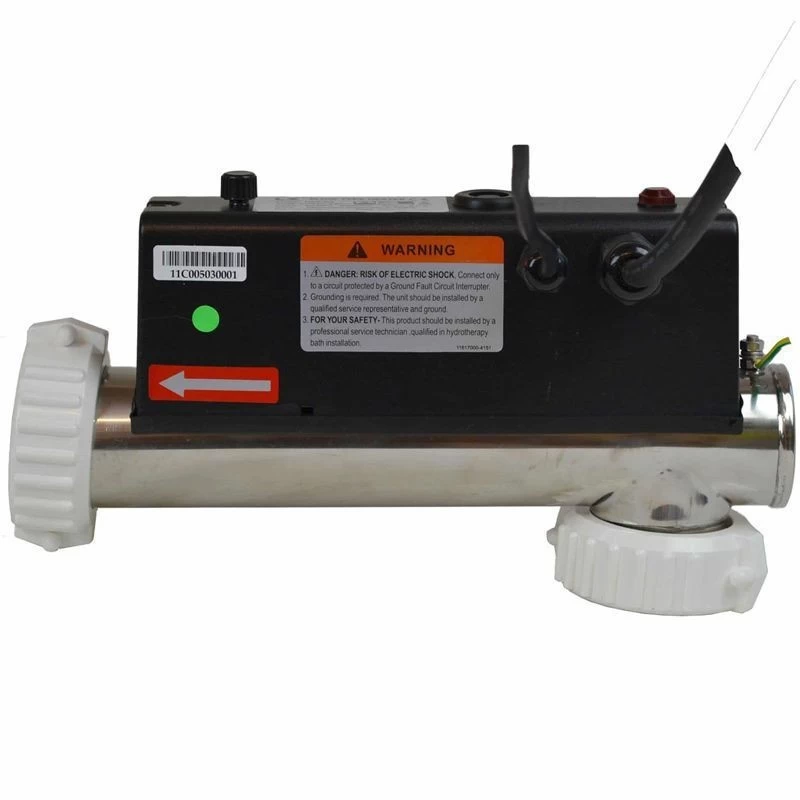

LX H30-R2 3.0KW 1.5 INCH HEATER (L-SHAPE)met Sensordraad

Type of Product:    Heater assembly
Manufacturer:    LX
Power:    Volts: 230 Hz: 50 KW: 3.0 Amps: 13.6HP:
Specifications:    Sensor compatibility: Controlled by the system control boxMaterial spec:Required flow rate: Set by a pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not workFlow detection: Pressure switch built into the heater run on a separate cord
Compatible With:    Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project
Connections & Fixings:    1.5 inch white plastic female sockets to connect to plumbing
Dimensions:    Length: Diameter: 50 mm Between terminals: Overall length complete:
Additional Notes:
This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly

High limit thermal cutout built in. This unit is rated IPX5 and has CE approval.
